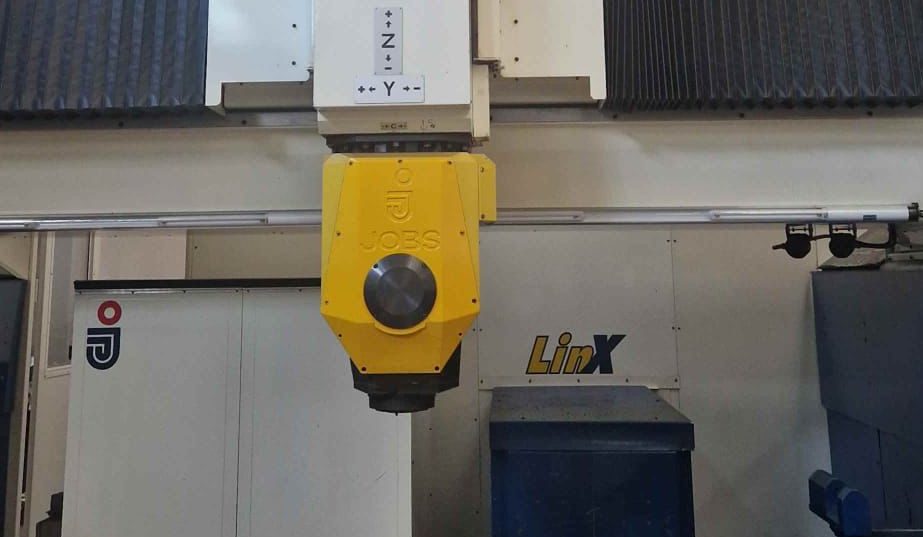

Folk Type Millinghead

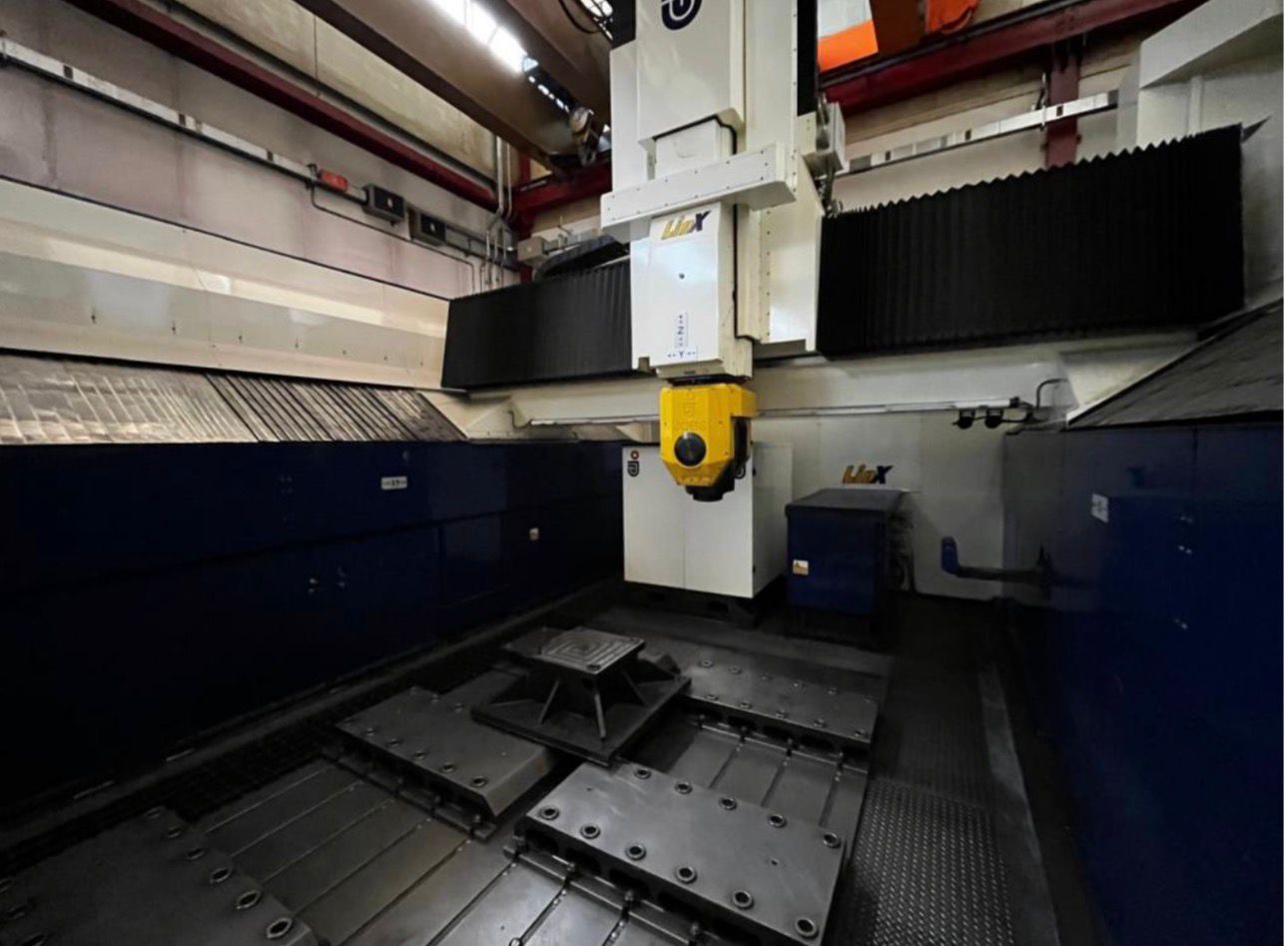

This Gantry Mill suitable for all industrial sectors for the materials
Cast & Iron Steel, composite etc.

Roughing & Machining for all kind of components

Notice :

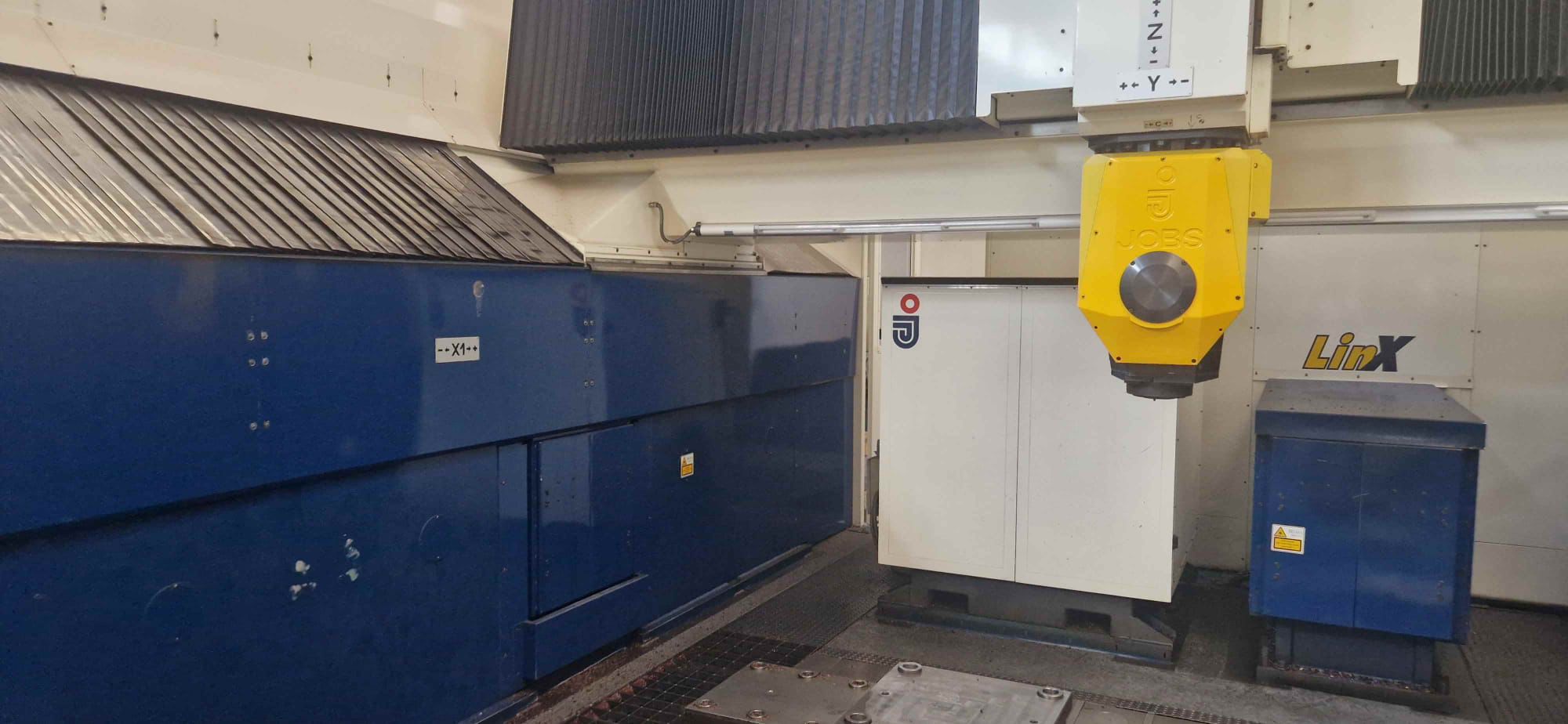

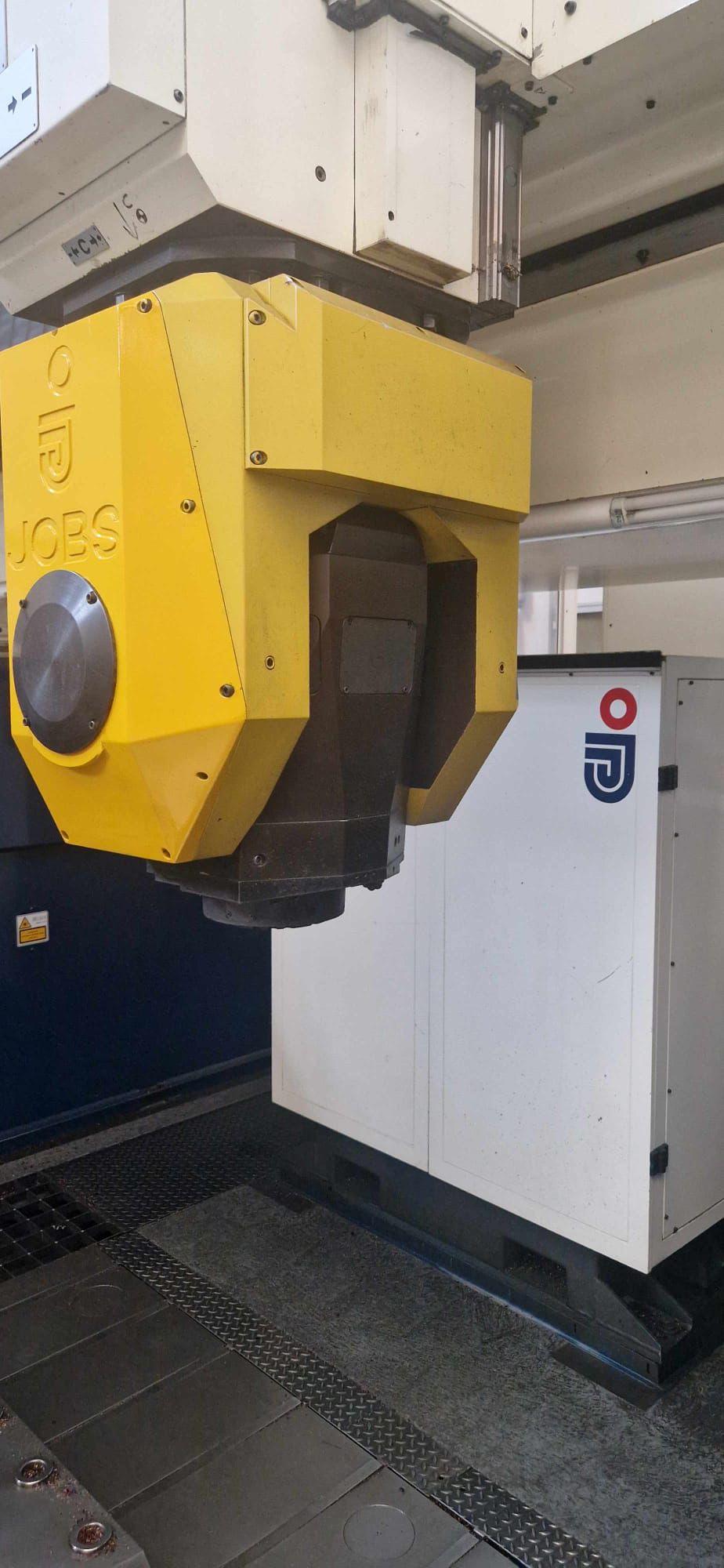

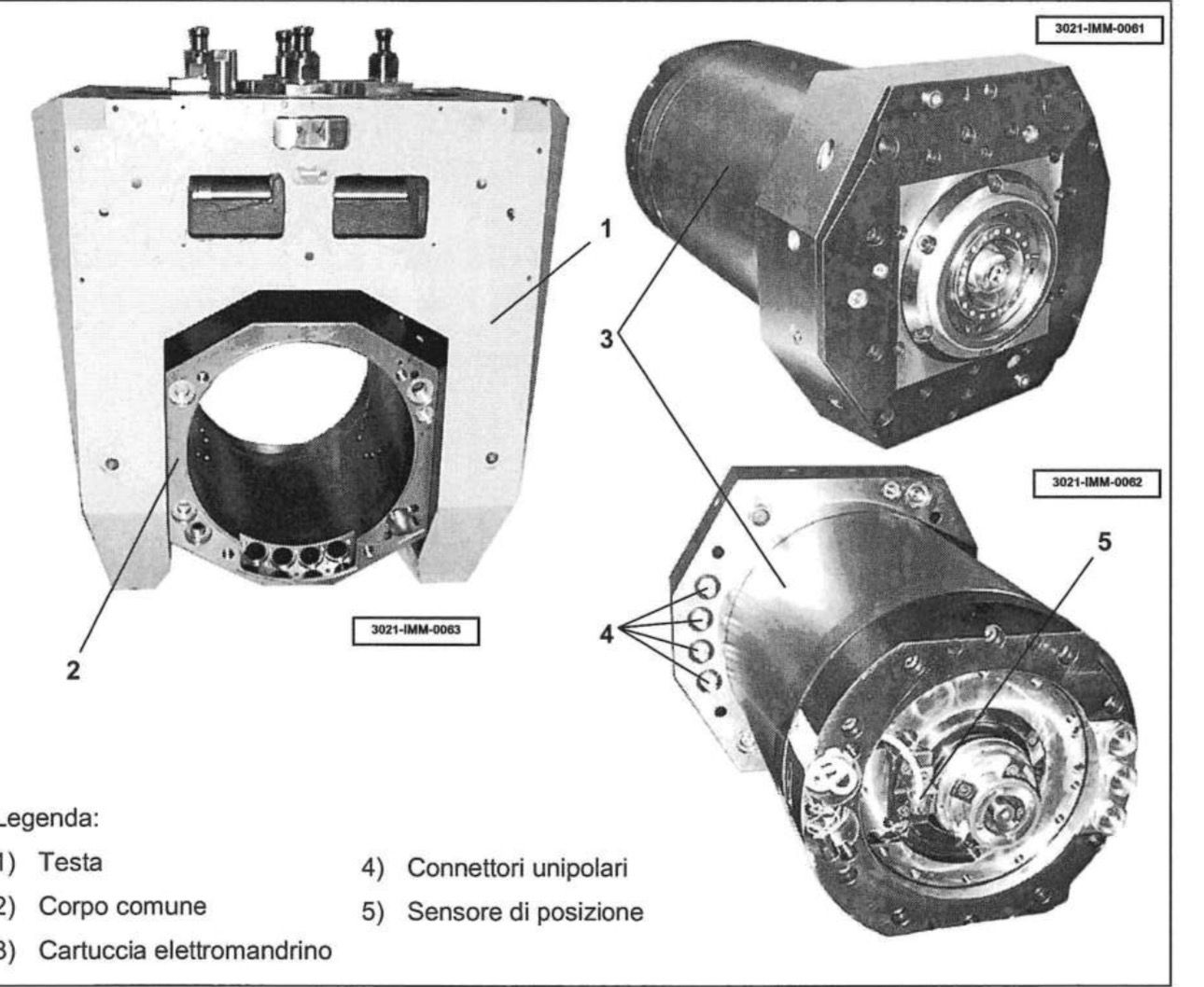

Folk Type Millinghead with changeable two Spindles ( HSK 100 + HSK 63 )

Technical Specifications :

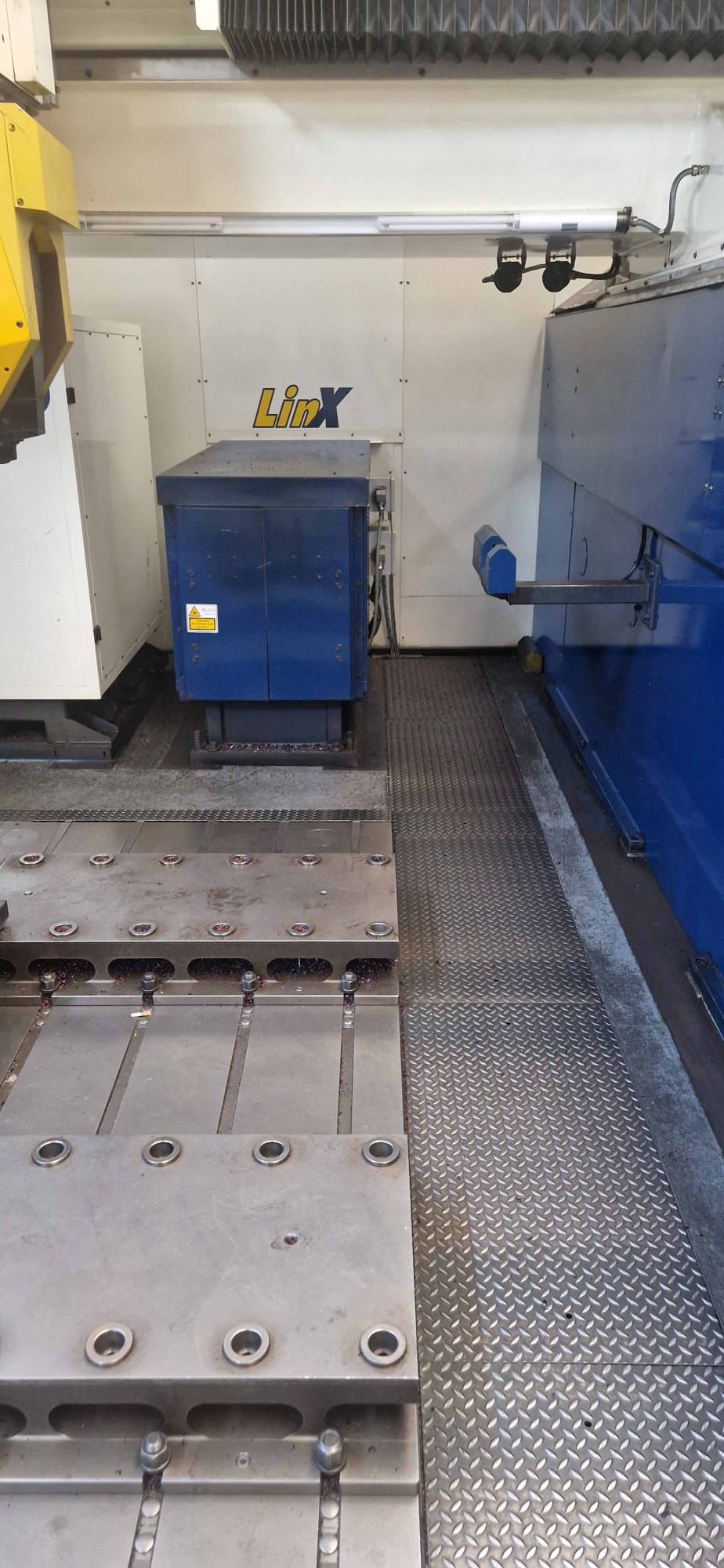

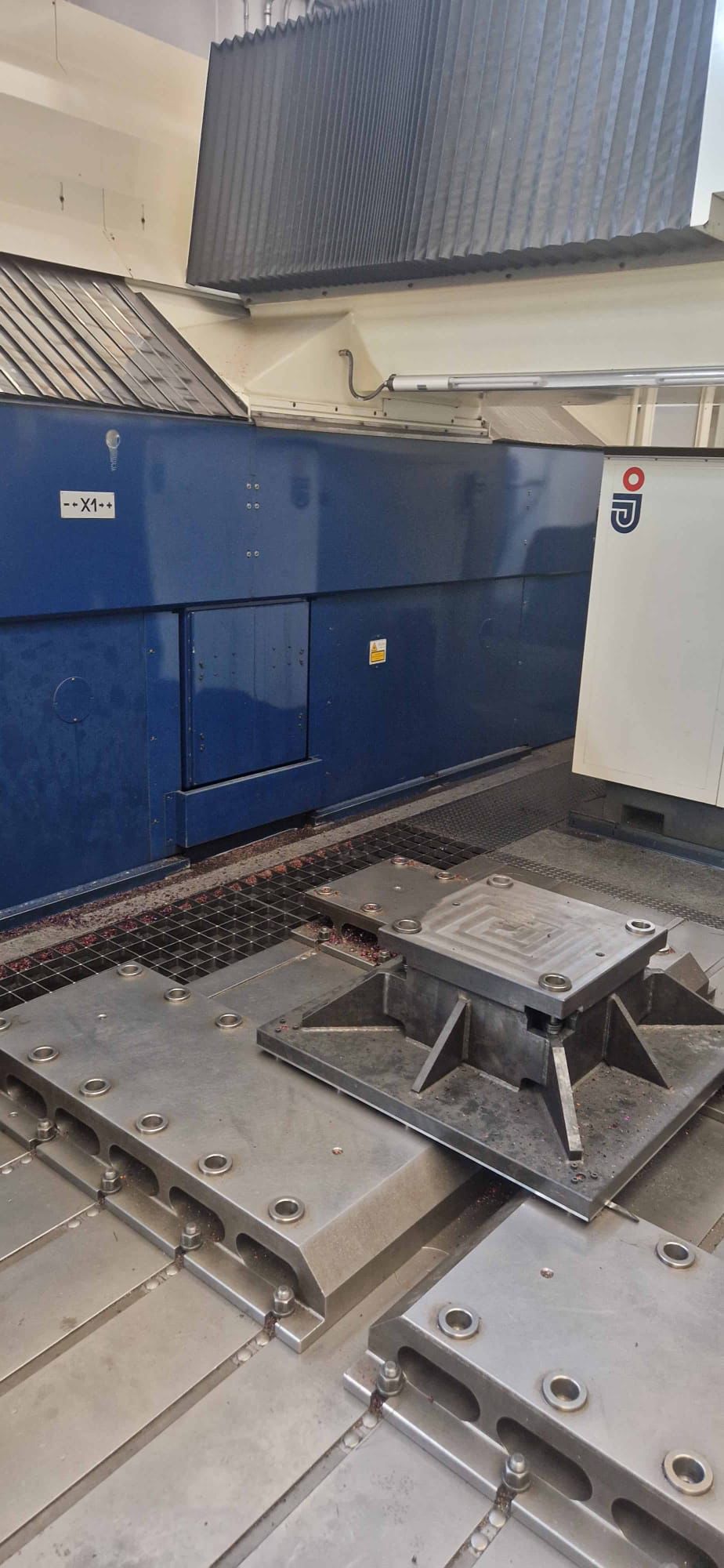

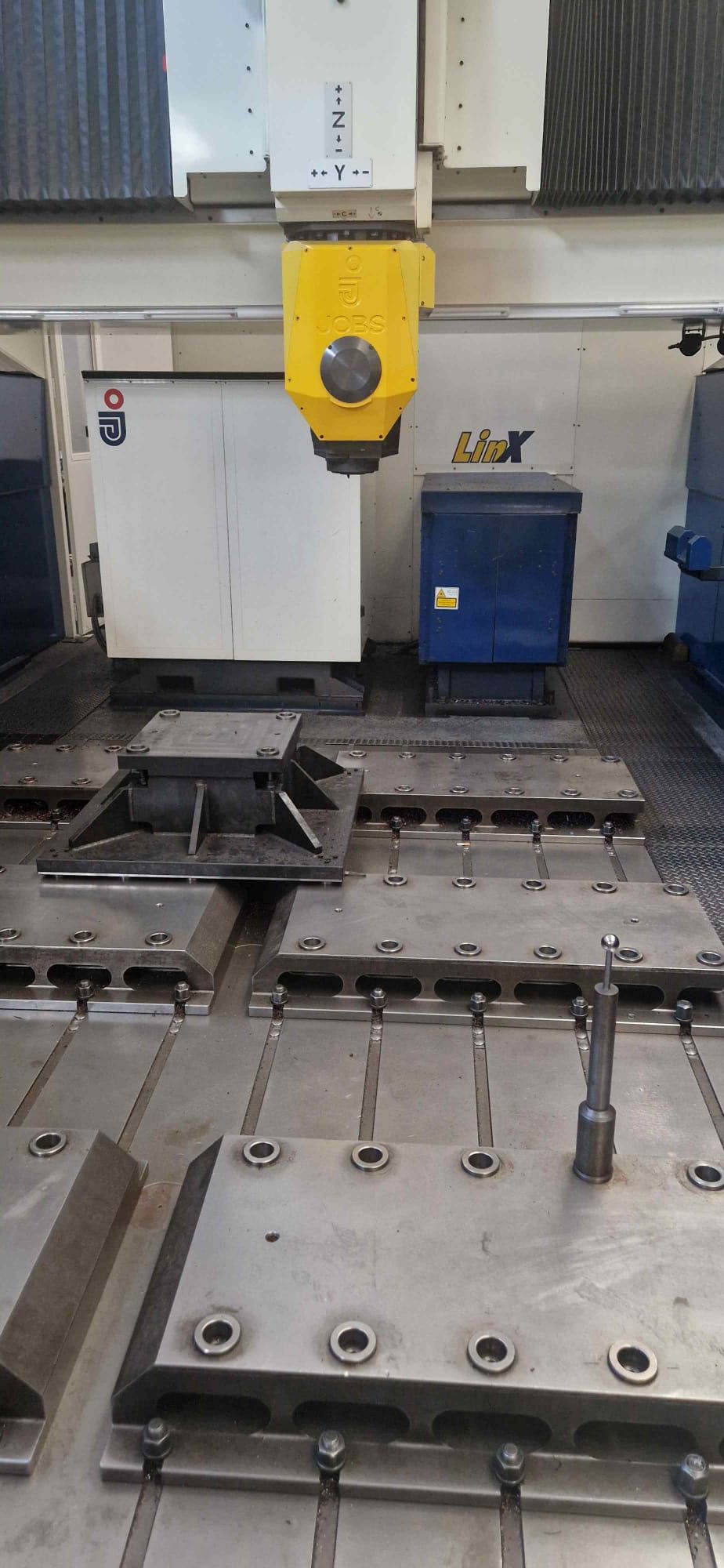

Table ( Floorplate ) Dimensions:
4000 x 2500 mm.
Distance between columns : 4000 mm
distance between spindle to table top: 1250 mm

Spindle 1 :
Taper = HSK 100
Speeds = 8000 RPM
Power = 33 kW

Spindle 2:
Taper = HSK 63
Speeds = 22.000 RPM
Power = 36 kW



Travels :
X = 4200 mm
Y = 3200 mm
Z = 1250 mm
C = 400* ( -200*/+200* ) degrees
A = 190* ( – 90* / +100* ) degrees

Rapid :
X, Y, Z = 50.000 mm / min

ATC Magazine:
33 Seats ( HSK 100 )
40 Seats ( HSK 63 )

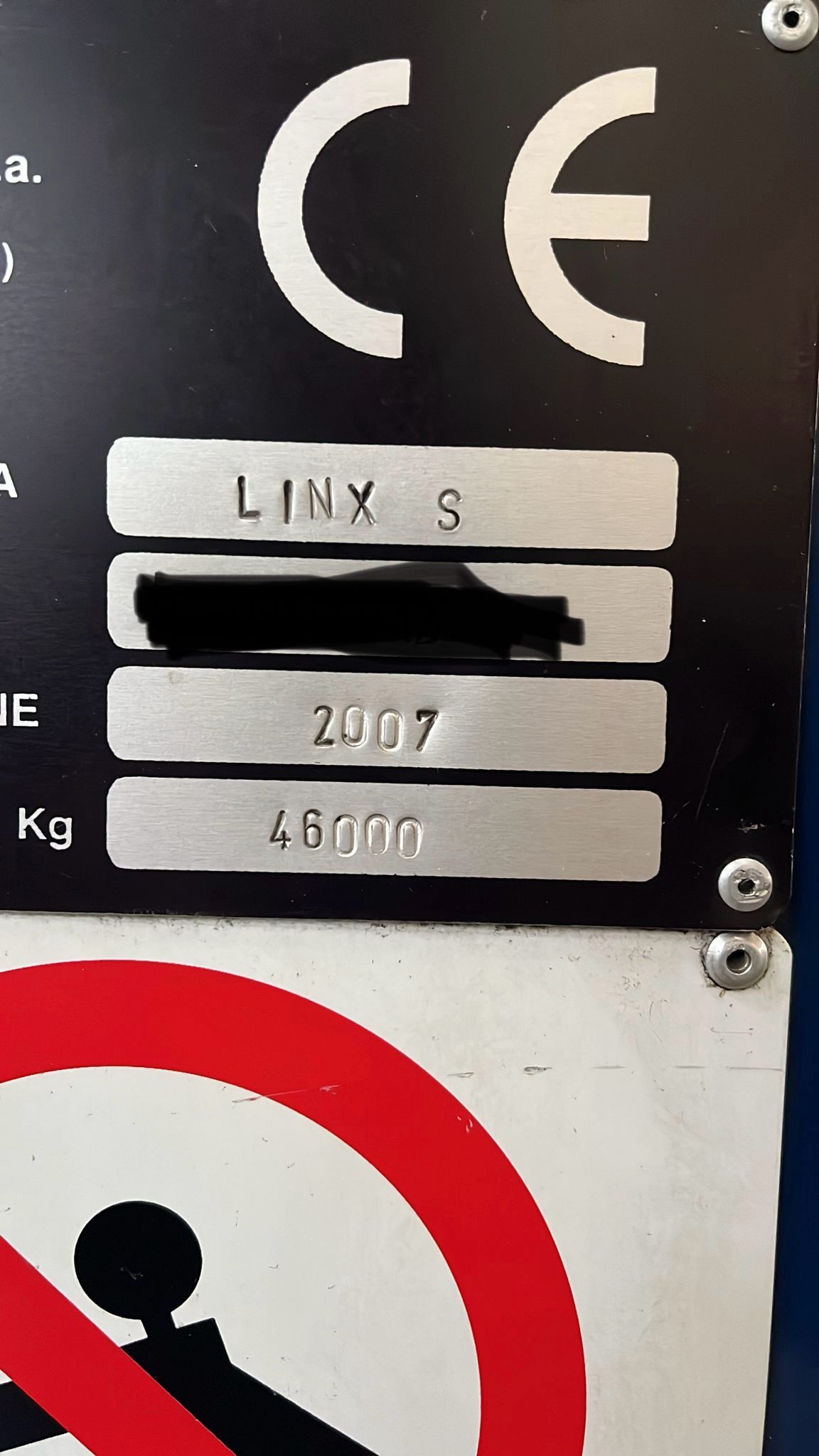

Machine weight : approx 46 Tons

Request to buy
