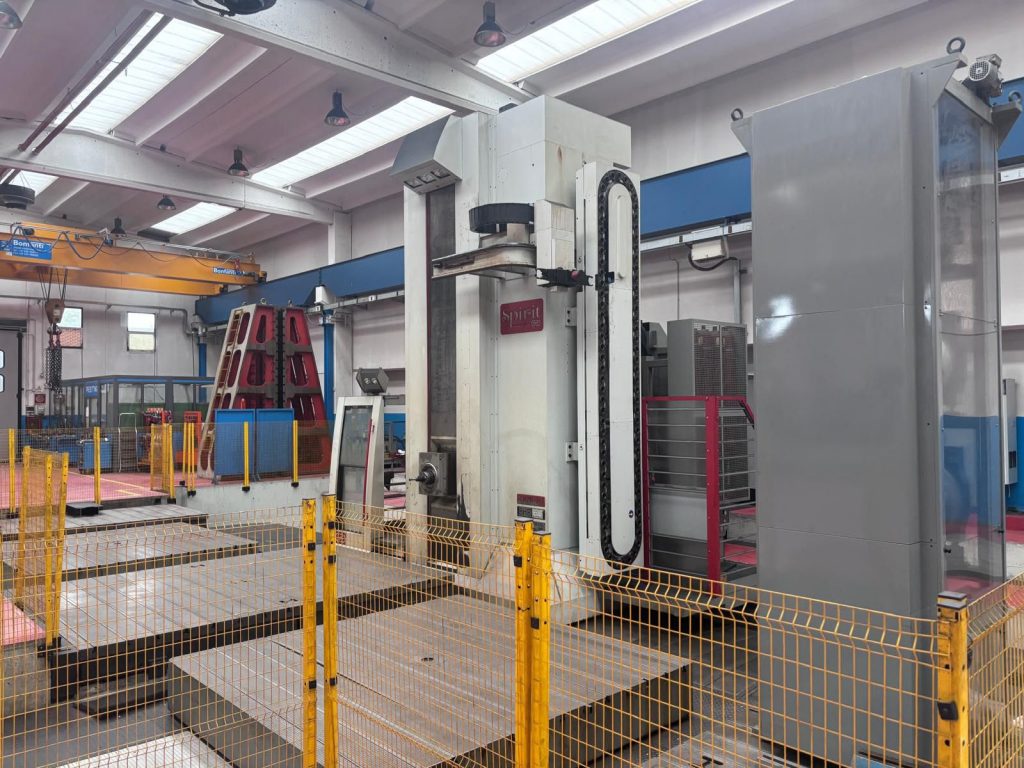

Original CNC RAM Type Floor Boring Mill in excellent condition/ under power!

Floor Boring Mill

2012

Original CNC RAM Type Floor Boring Mill in excellent condition/ under power!

Man.: FPT / Italy
Type: SPIRIT
YOM: 2012
CNC: SIEMENS 840 D

Technical Specifications:

Spindle:
Dia = 180 mm
Taper = ISO 50 mm
Speeds = 3000 RPM
Power = 60kW
Torque = 8250 Nm

Travels:
X = 14.000 mm
Y = 5.000 mm
Z = 1.500 mm
W = 1.000 mm

Two NC Rotary Tables
Each 3000 x 3000 mm
Payload max. 50 Tons / each

ATC Magazine: 120 Seats

The machine is equipped with 3 heads:

1 x TUPCG thousandth bi-rotary automatic head,

1 x automatic head for large removals TO144

1 x D’Andrea turning head with working range from diam. 150 to diam. 1600 mod. U-TRONIC 800.

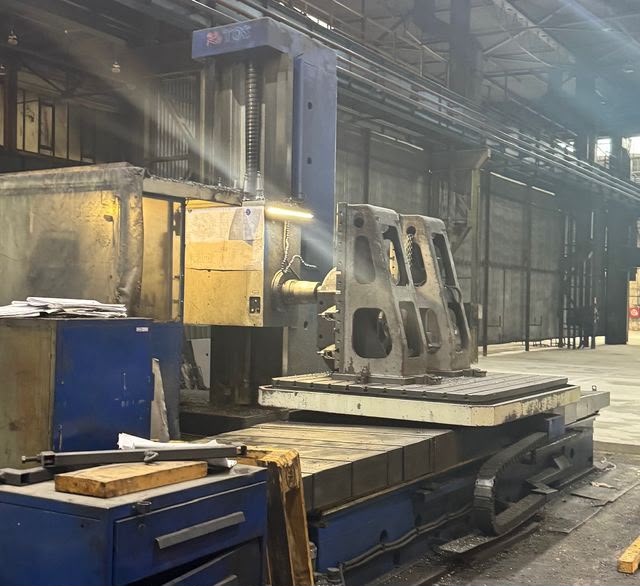

Original CNC Table Type Borer in excellent condition under power at site!

Table Type Borer

2007

Original CNC Table Type Borer in excellent condition under power at site!

With 3000 RPM!

Make: TOS
Type: WHN 13.8 CNC
YOM: 2007 completely rebuilt by TOS!
Control:
Heidenhain iTNC 530

Travels:
X = 3.500 mm
Y = 2.000 mm
Z = 1250 mm
W = 800 mm

Spindle:
Dia = 130 mm
Taper = ISO 50
Speeds = 3000 RPM
Power = 37 kW

Table dimensions:
2200 x 1800 mm
Max. Payload: 12.000 Kg

Machine weight: ca. 38 Tons

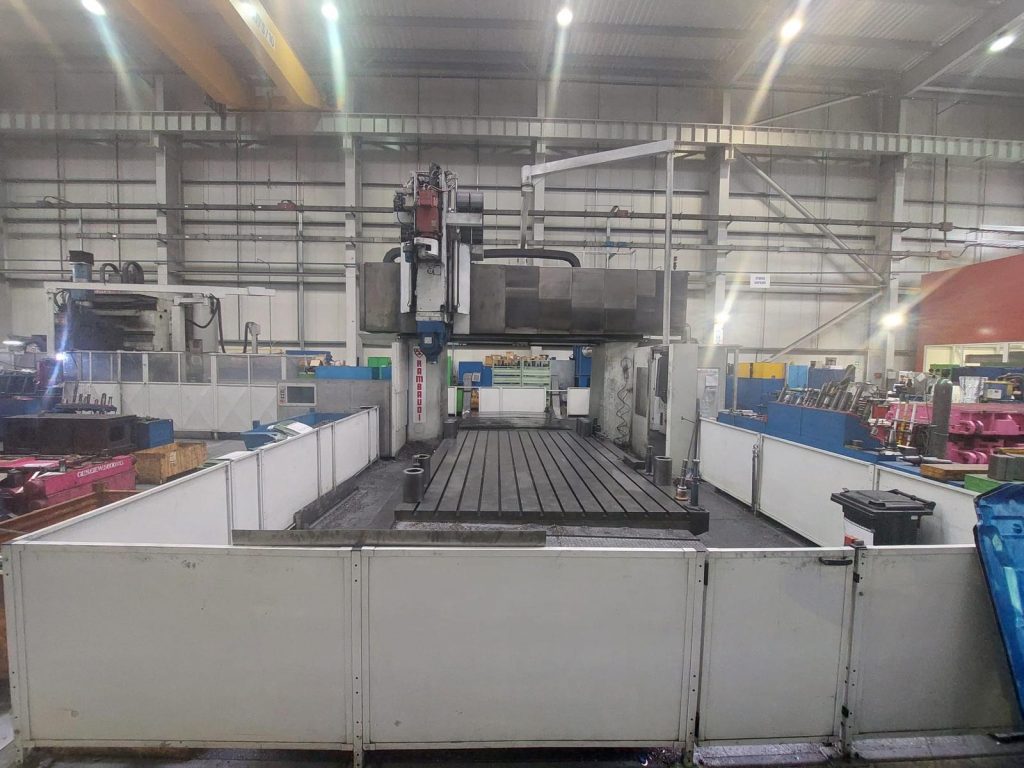

Original Heavy Duty 5 Axis Simultaneous Gantry Mill with Table Movement!

Milling Machines

2011

Original Heavy Duty 5 Axis Simultaneous Gantry Mill with Table Movement!

Make: Ramdaudi / Italy
Type: PV2
YOM: 2011 (Original built year)
Control: Fidia NC15R
Condition: Excellent, under power!

Technical Specifications:

Table dimensions:
4500 x 3000 mm
Max. Payload: 20 Tons

Travels:
X = 3.700 mm
Y = 3.500 mm
Z = 1.100 mm
C = 360* degrees continuous
A = -/+ 95* degrees continuous.

Spindle:
Taper ISO 50
Speeds max. 2500 RPM
Power 37 kW

Machine dimensions:
L x W x H = 15 x 9.2 x 6 m
Machine weight: ca. 70 Tons

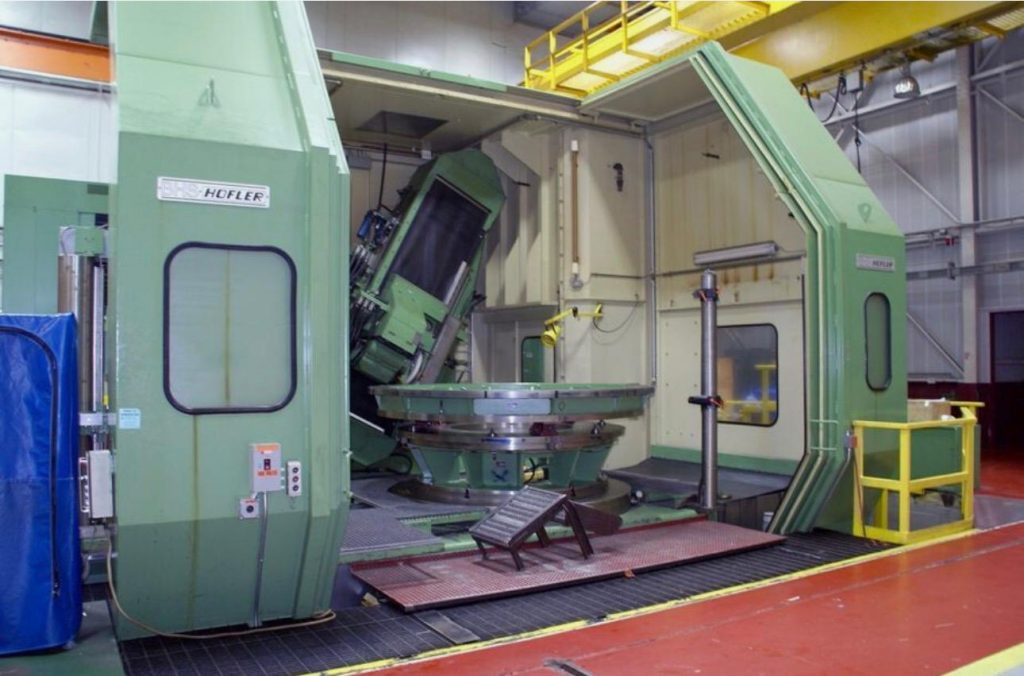

CNC Gear Grinding Machine with Gear Measuring machine!

Grinding Machines

1990

CNC Gear Grinding Machine with Gear Measuring machine!

Make: HÖFLER
Year: 1990
Control: Höfler

Maximum Workpiece Diameter 4000mm
Gear Width 1560mm
Module 3-32
Number of Teeth 12-768
Maximum Angle of Teeth 35 R/L Grad
Pressure Angle 14-31 Degrees
Table Diameter 1900mm
Table Bore Diameter 750mm
Maximum Workpiece Weight 35000kg
Grinding Head Stroke 1600mm
Ways hydrostatic
Coolant, Filtration System
Way Covers: rubber roll-up, metal telescopic and bellows neoprene
Power 3 PH / 60 Hz / 230 – 460 V

Equipped with:
Reutlinger balancer
Oil mist extraction system

measuring machine!
HOFLER
Year: 1990
Max. Gear Diameter: 4000mm

Both machines are in Excellent condition

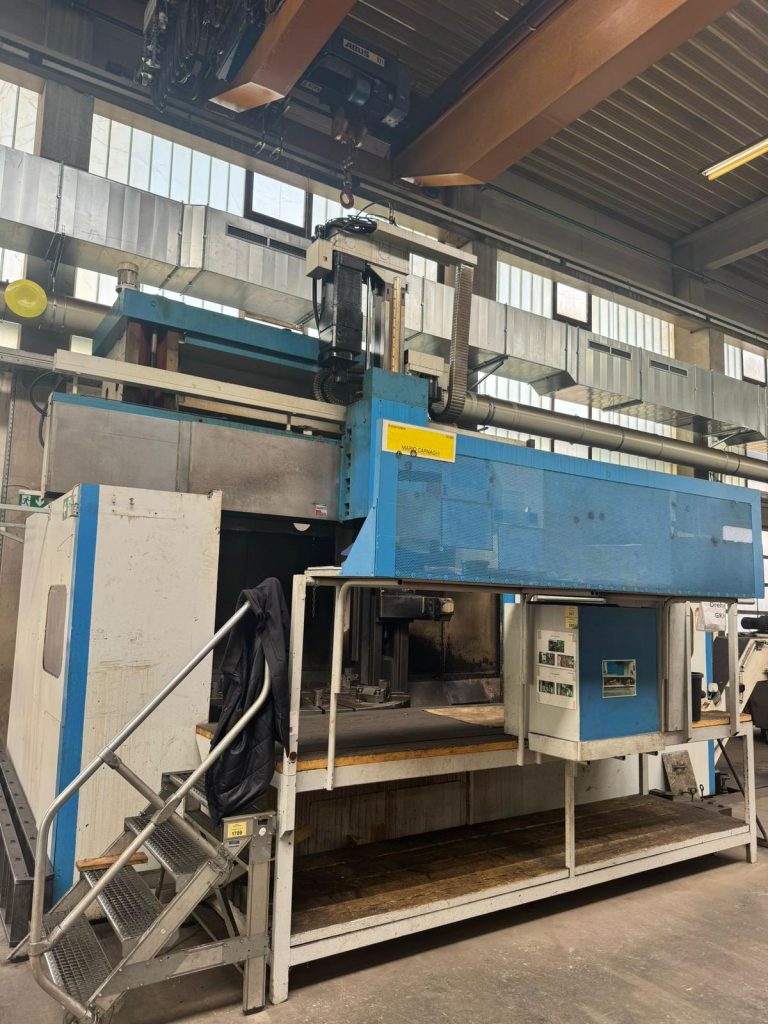

Original CNC VTL with C Axis & Driven Tool!

Lathes

1997

Original CNC VTL with C Axis & Driven Tool !

Make : Mario Carnaghi / Italy
Type: TG 20/2500
YOM: 1997
Control: Siemens 840 C
Condition: good / under power!

Technical Specifications:

Table dia: 2000 mm
Max. Payload: 20 Tons
C Axis
Speeds: 2-250 RPM
Milling speed: 0-4000 RPM
Power: 60 kW

Max. Turn dia: 2500 mm
Max. Turn height: 2000 mm
RAM SECTION. 250×250 mm
Rapid: 10.000 mm/min

Incl. 1x Driven tool & some tools (pic attached).

Machine weight: ca. 46 Tons.

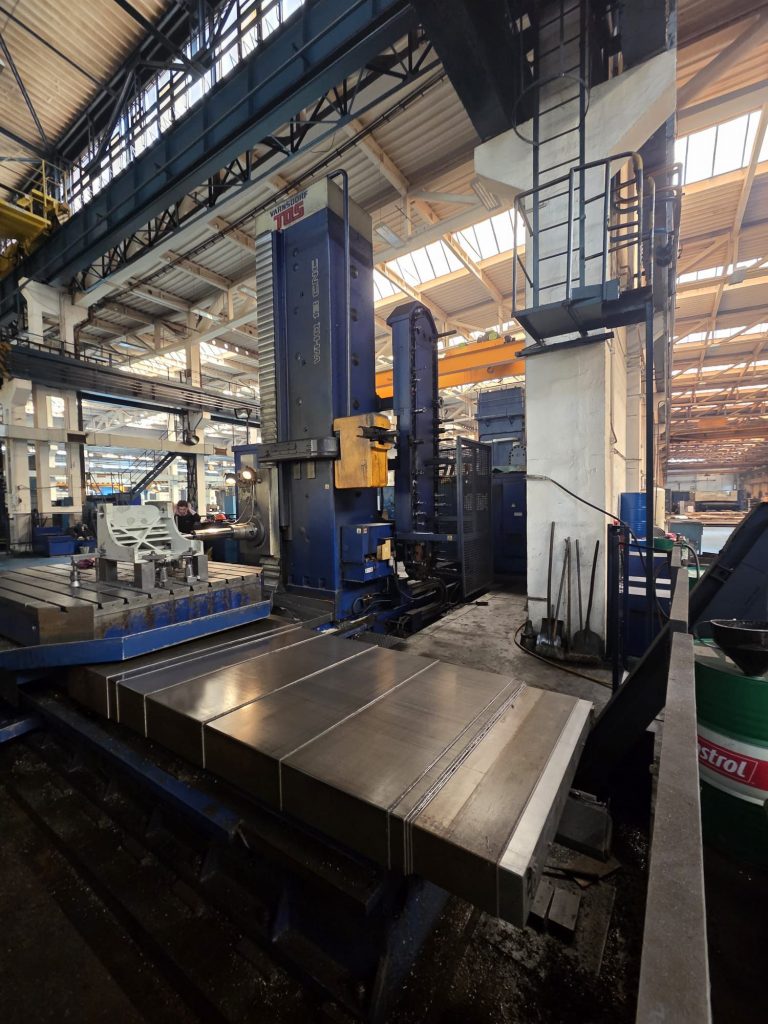

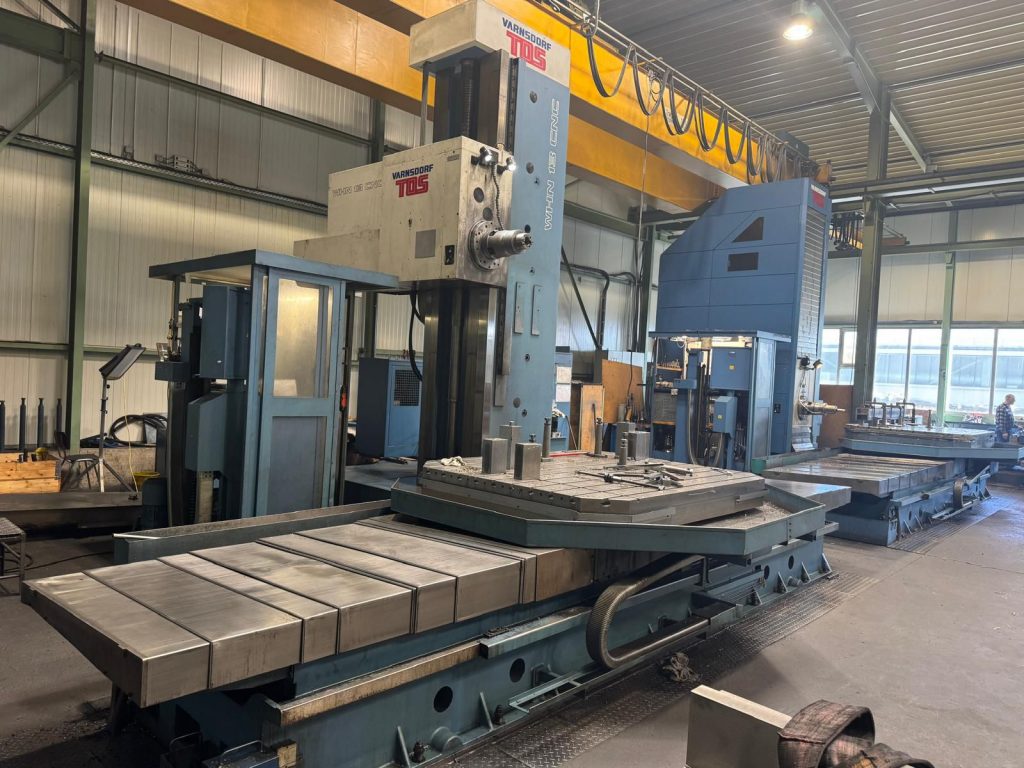

Original CNC Table Type Boring machine in excellent condition! With X 5m & Y 3m!

Table Type Borer

2006

Original CNC Table Type Boring machine in excellent condition!
With X 5m & Y 3m!

Make: TOS
Type: WHQ CNC
YOM: 2006
Control:
Heidenhain iTNC 530

Technical Specifications:
Spindle:
Dia 130 /ISO50
Speeds: 2500 RPM
Power: 37 kW

Travels:
X = 5.000 mm
Y = 3.000 mm
Z = 1.250 mm
W = 800 mm
B = 360* degrees continuous

Table dimensions:
2.200 x 1.800 mm
Max. Payload: 12 Tons

Machine weight ca. 45 Tons

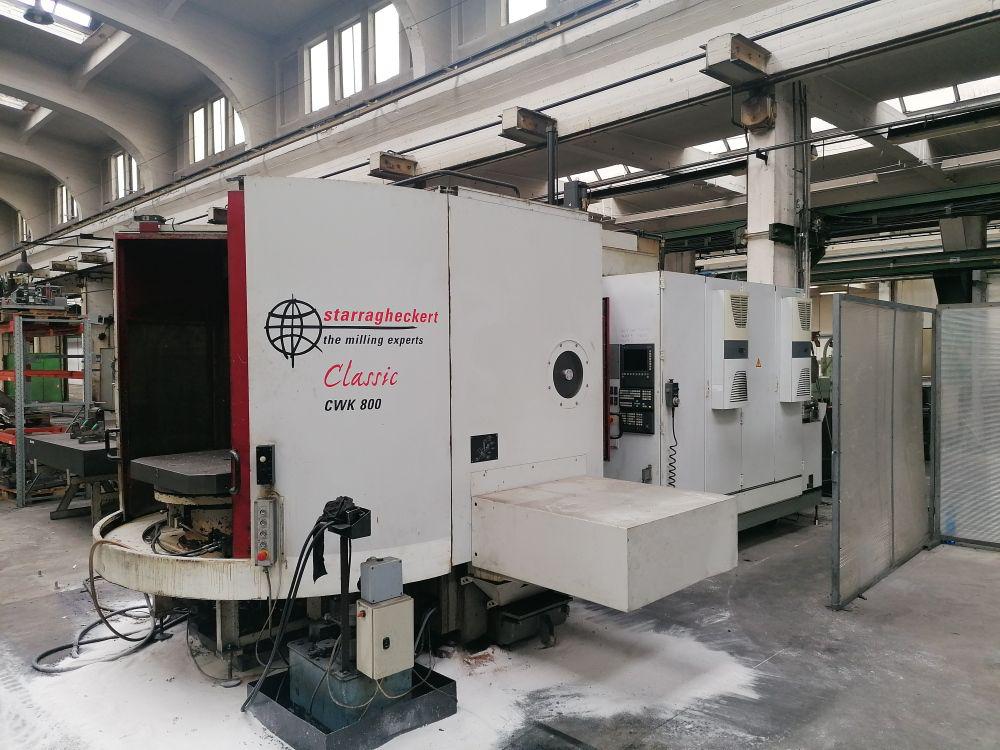

Two HMC‘s – Purchase as Set or as Single Machine

Machining Centers

2008

You can purchase two HMC machines either as a set or as individual machines.

A quick deal for a low budget!

Make: Starrag Heckert
Type :
1.⁠Athletic HEC 800,
YOM 2008
Control: Siemens 840 D

Pallet -800/800mm
Pallets changer: 2x

X-1400 mm
Y- 1100 mm
Z- 1300 mm

Taper ISO 50
Speeds 6000 RPM

2.Make: Starrag Heckert
CWK 800 ,
YOM 2004
Control : Siemens 840 D

Pallet -800/800mm
Pallets changer : 2 x

X-1140mm
Y-910mm
Z- 810mm

Taper ISO 50
Speeds 6000 RPM

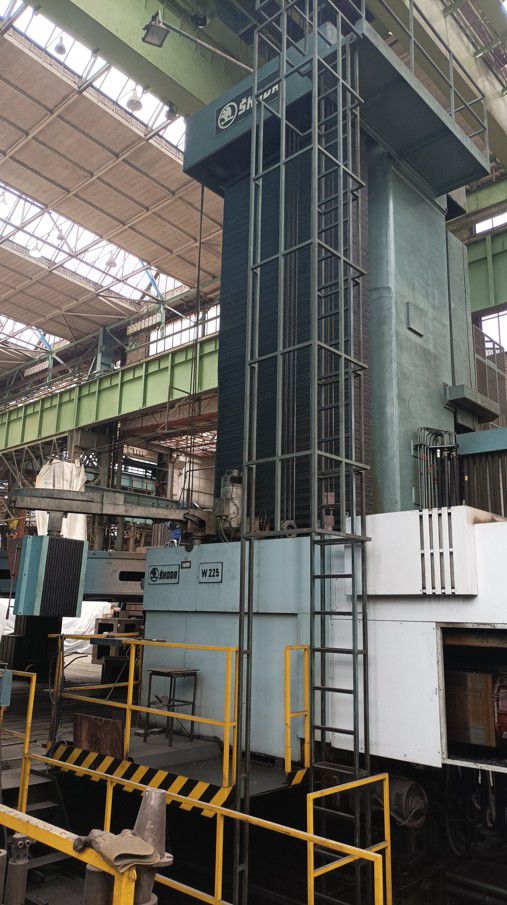

Original CNC Ram Type Floor Boring Mill

Floor Boring Mill

1995

Original CNC Ram Type Floor Boring Mill

Make: Skoda
Type: W 225
YOM: 1995
CNC Control: ?

Technical Specifications:

Spindle:
Diameter = 225 mm
Taper = ISO 60
Speeds = max. 900 RPM
Power = 90 kW

Quill section = 520 x 520 mm

Travels:
X = 9.000 mm
Y = 5.000 mm
Z = 1.600 mm ( RAM )
W = 1.250 mm ( Spindle )
Z+W = 2.850 mm

Rapid / X, Y = 10 m / min

The machine will be sold without a rotary table or floor plates.

However, these can be supplied for an additional charge.

Original CNC Table Type Boring Machine

Table Type Borer

2003

Original CNC Table Type Boring machine in excellent condition with high accuracy.
Still under production!

Make: TOS
Type: WHN 13.8 CNC
YOM: 2003
Control: Heidenhain TNC 426/30

Technical Specifications:
Spindle:
Dia 130 /ISO50
Speeds: 3000 RPM
Power: 37 kW

Travels:
X = 3.500 mm
Y = 2.500 mm
Z = 1.250 mm
W = 800 mm
B = 360* degrees continuous

Table dimensions:
2.200 x 1.800 mm
Max. Payload: 12 Tons

Machine weight ca. 38 Tons

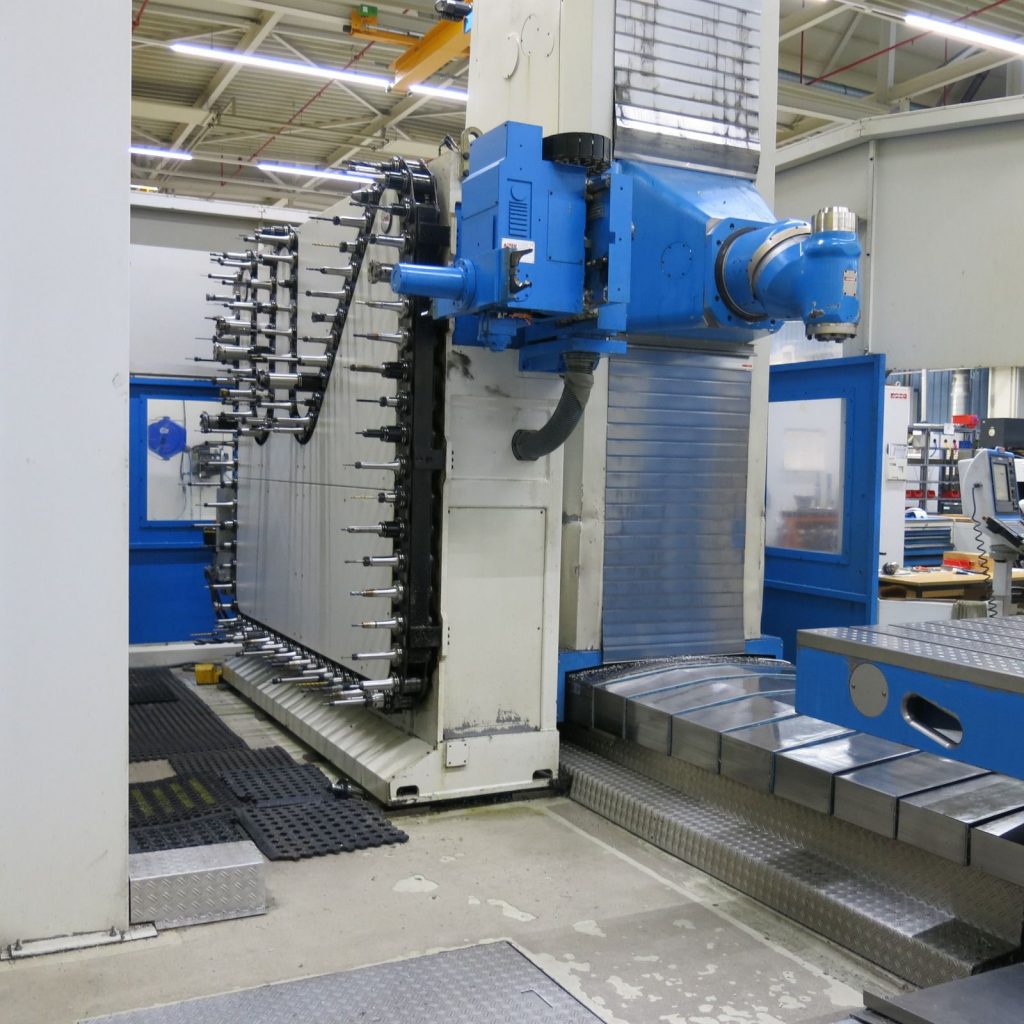

5 Axis T-Type Milling Machine

Universal Millinghead

2008

Equipment:
NC 2 Axis Universal Milling Head !
3 x Rotary Tables:
1600 x 3000 mm, with changer!
Including Toolholders / ISO 50 !

Make: Juaristii / Spain
Type: TX1-D
YOM: 2008
Control:
Heidenhain iTNC 530

Technical Specifications:
X = 4000 mm
Y = 2500 mm
Z =. 2000 mm ( Column )
B = 360° continuous
C = 360° 1°

Spindle:
Taper = ISO 50
Speeds = 3500 RPM
Power = 25 kW

ATC Magazine: 100 Seats

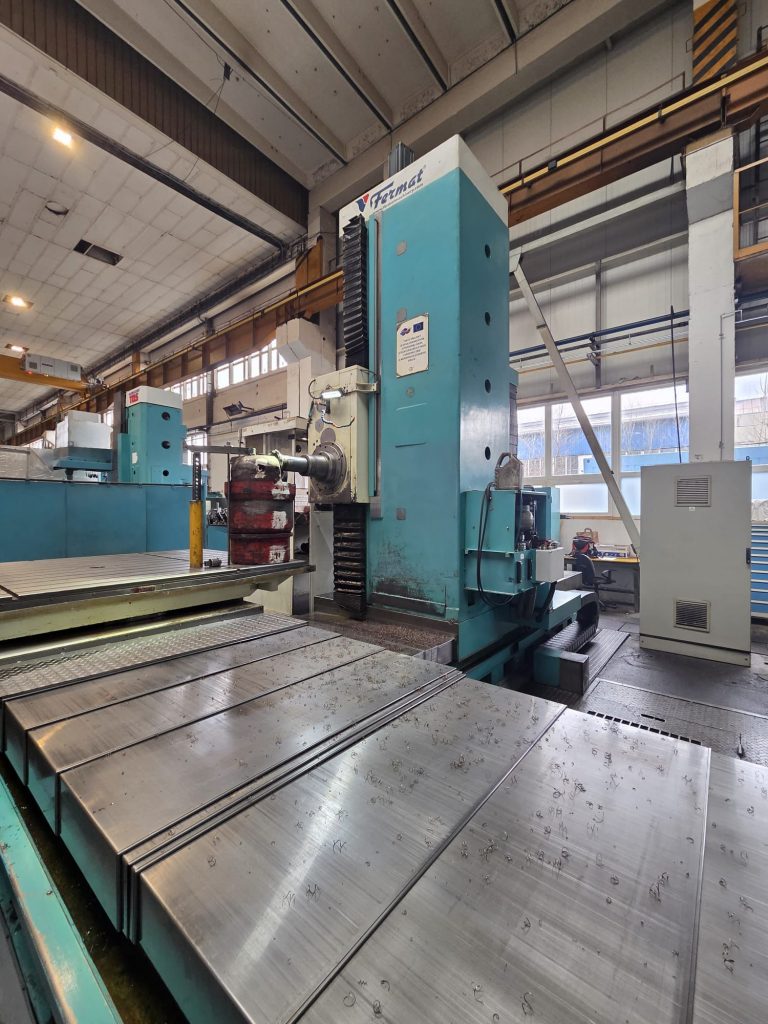

Original CNC Table Type Boring Machine

Table Type Borer

2006

This original CNC Table Type Boring Machine is in excellent condition and fully operational on site!

Make: TOS / Fermat
Type: WHN 13 CNC
YOM: 2006 Completely rebuild by Fermat!
Control: Fagor

Travels:
X = 3.500 mm
Y = 2.000 mm
Z = 2.250 mm
W = 800 mm

Spindle:
Dia = 130 mm
Taper = ISO 50
Speeds = 1600 RPM
Power = 37 kW

Table dimensions:
2200 x 1800 mm
Max. Payload: 12.000 Kg

Machine weight: ca. 38 Tons

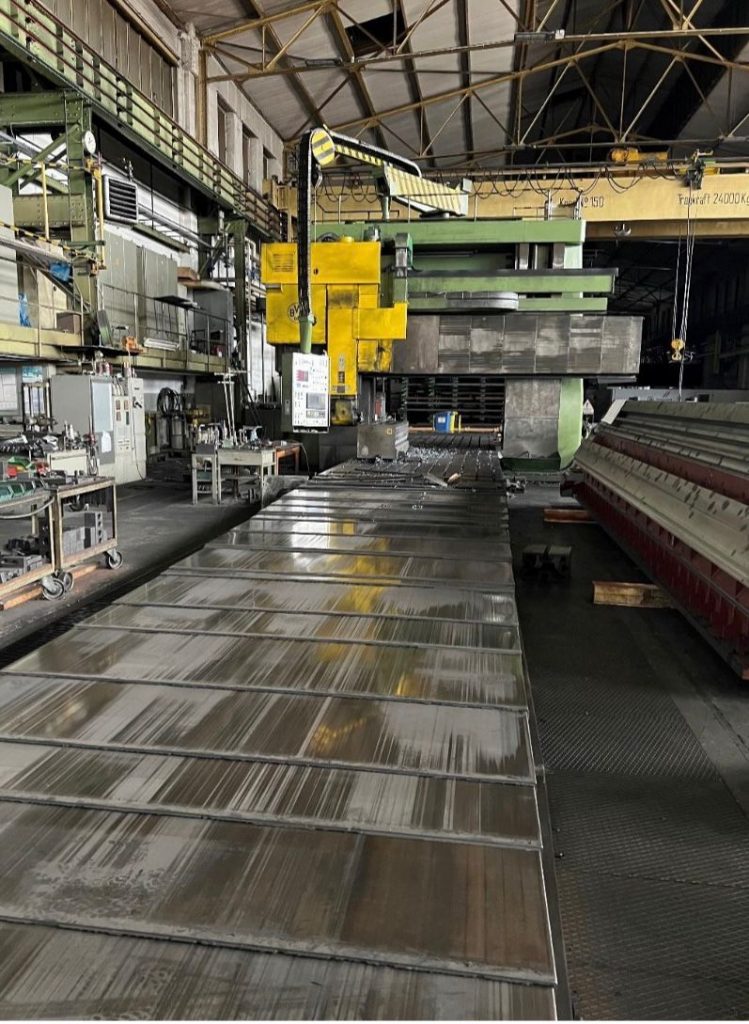

Heavy Duty CNC Portal Milling Machine

Milling Machines

1979

Heavy Duty Original CNC Portal Milling Machine in good working condition, under power at site !

Make : Waldrich Coburg
Type : 20-10 FP 250 CNC
YOM : 1979
Control : Siemens 7M

Technical Specification:
Table :
2 x 5500 x 2500 mm
Coupled 11.700 mm

Passage Width : 2900 mm
Passage Height : 2500 mm

Travels :
X = 11.000 mm
Y = 3.650 mm
Z = 1.000 mm ( Spindle )
W = 2500 mm ( Crossbeam )

Tool Taper : ISO 60
Diverse Millingheads !
