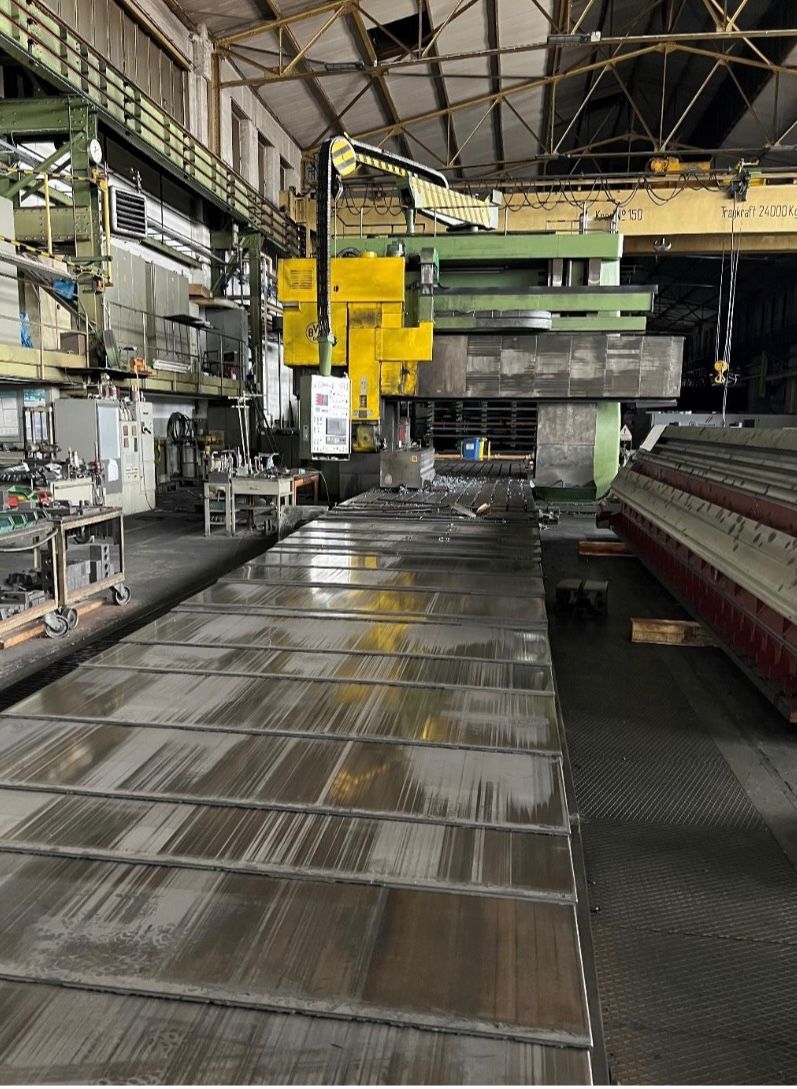

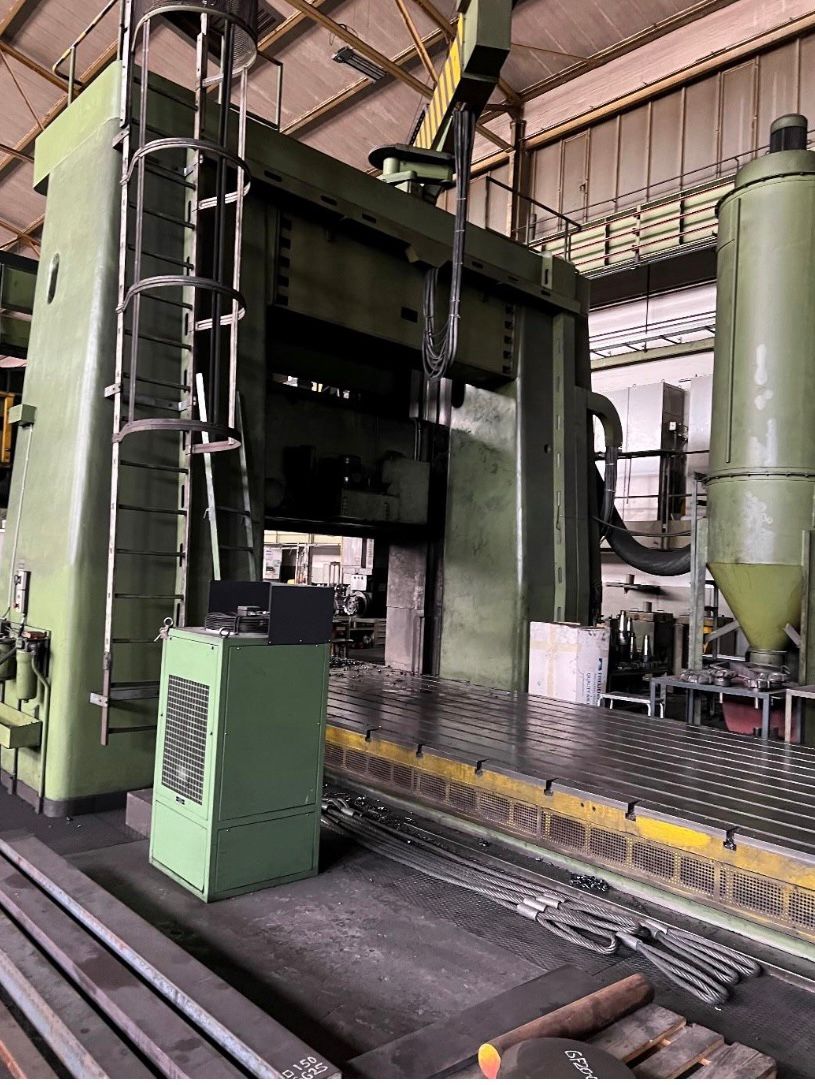

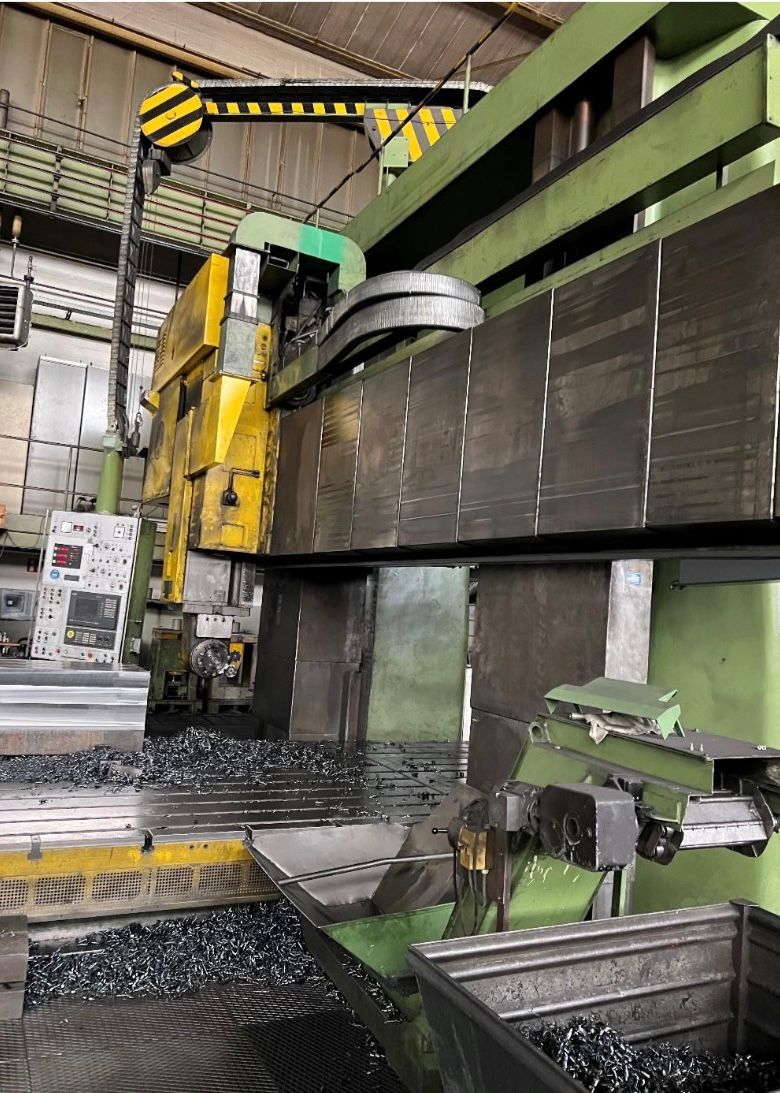

Heavy Duty Original CNC Portal Milling Machine in good working condition, under power at site !

Make : Waldrich Coburg
Type : 20-10 FP 250 CNC
YOM : 1979
Control : Siemens 7M

Technical Specification:
Table :
2 x 5500 x 2500 mm
Coupled 11.700 mm

Passage Width : 2900 mm
Passage Height : 2500 mm

Travels :
X = 11.000 mm
Y = 3.650 mm
Z = 1.000 mm ( Spindle )
W = 2500 mm ( Crossbeam )

Tool Taper : ISO 60

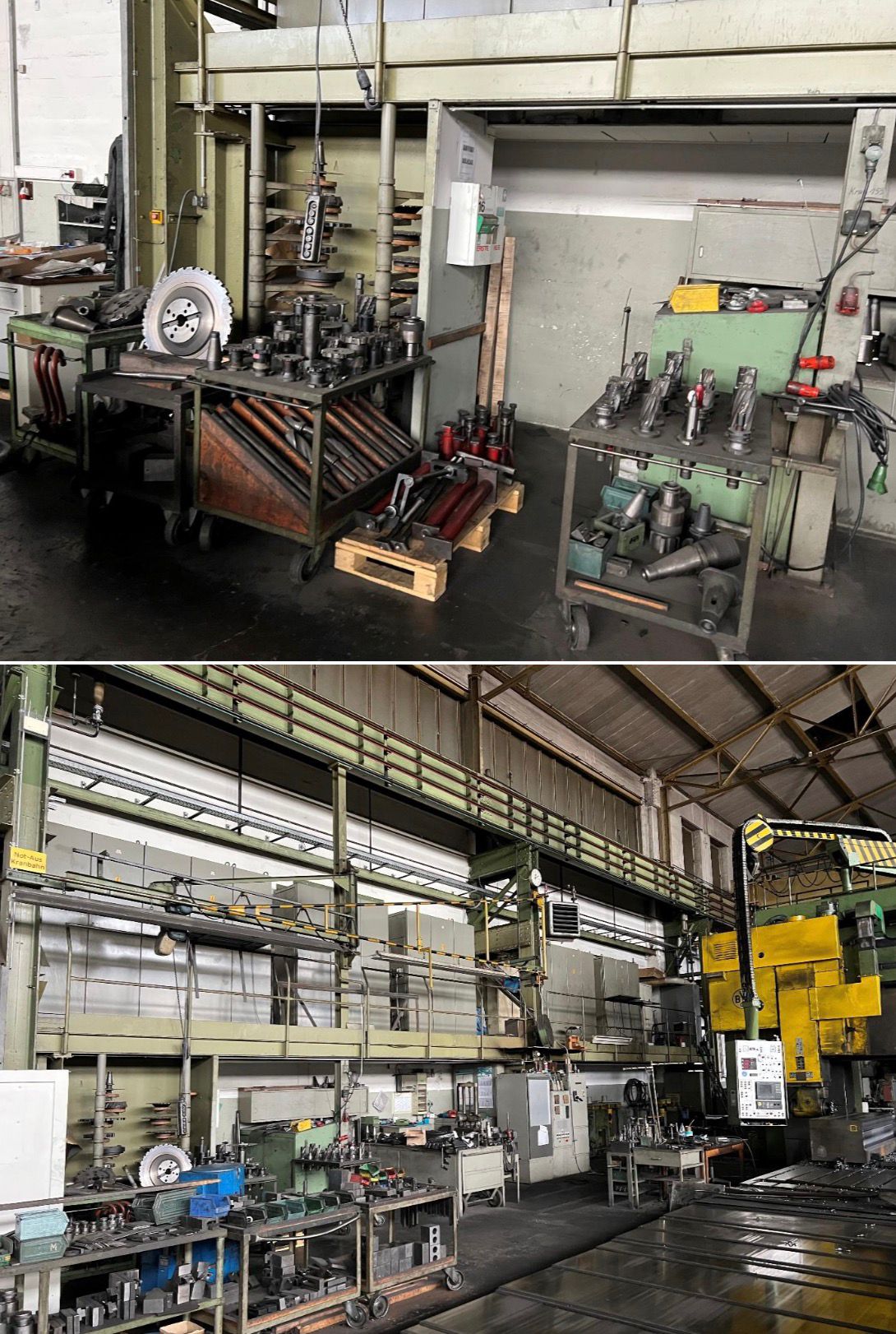

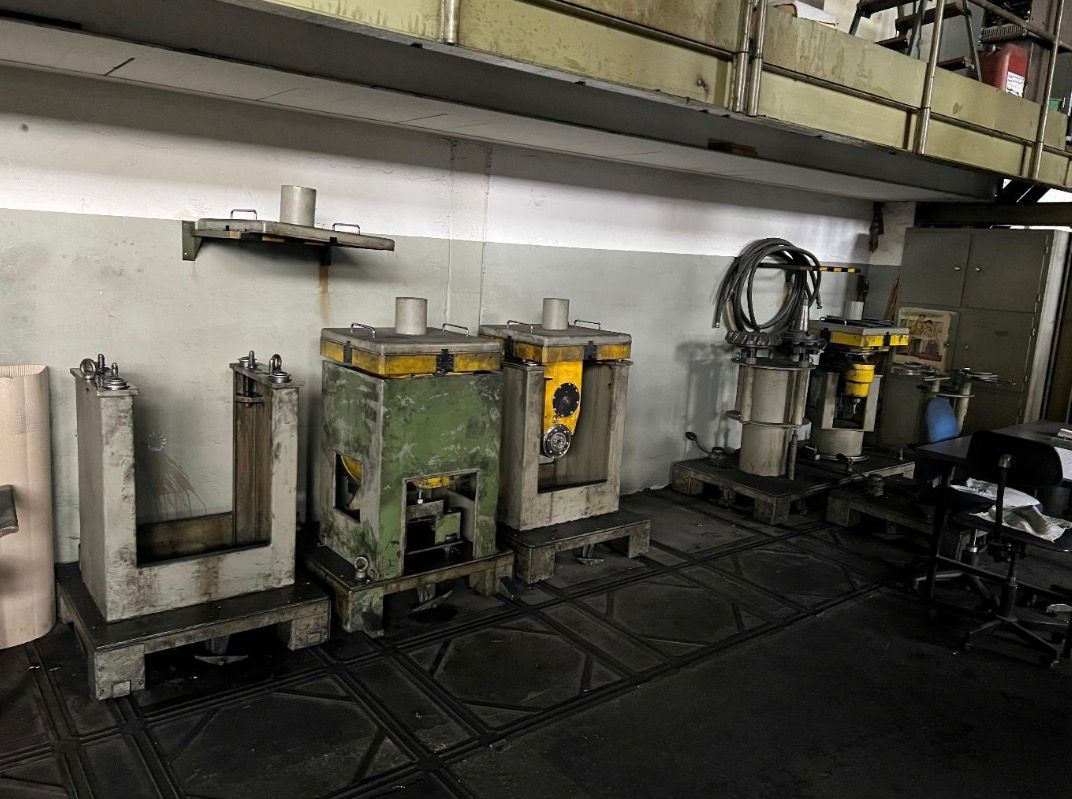

Diverse Millingheads !
